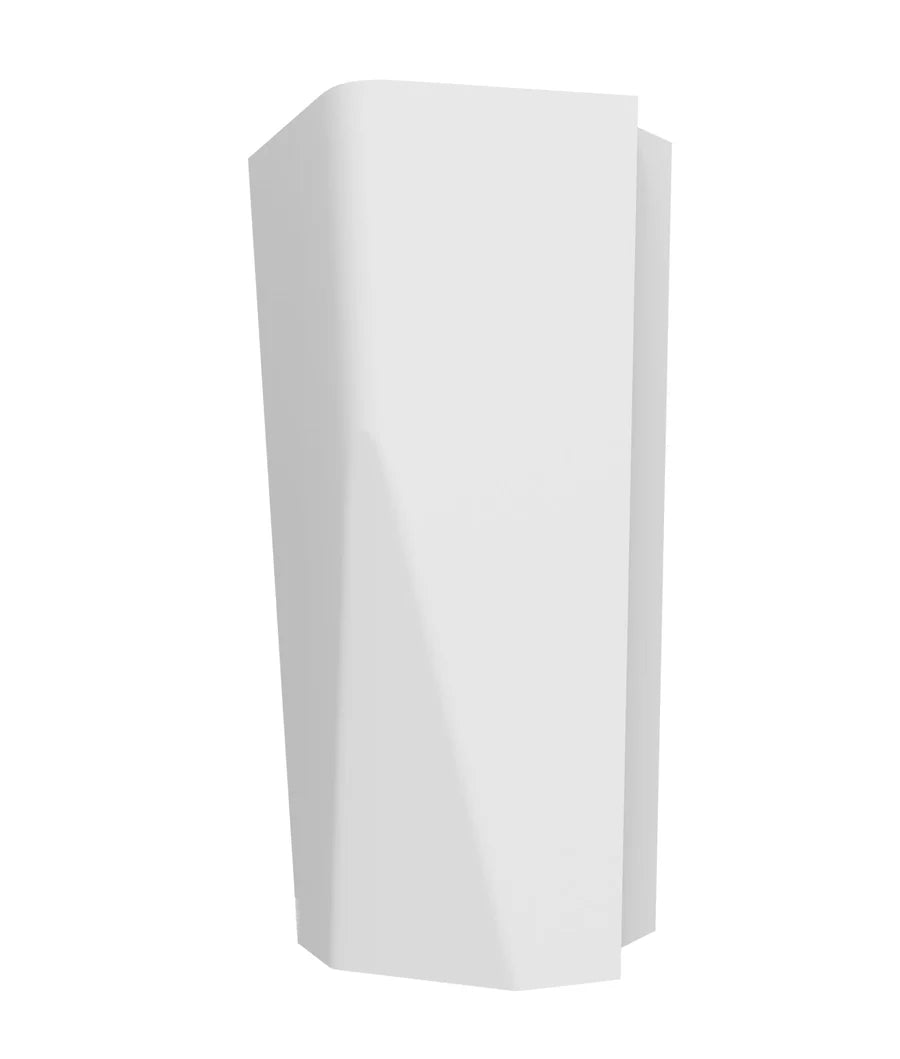

WALL S/M Up/Dn 11W WEDGE Wh 3K IP65 Alt Beam 550 Lm

• Exterior Surface mounted up/down LED wall lights
• Input voltage range: 100-240V AC 50/60Hz
• Driver output voltage range: 18-42V
• Driver input current: 0.053A
• Driver output current: 300mA
• Inrush current: 1.2A
• Housing: powder coated aluminium
• Bracket: PC
• LED chip: 2pcs 5050
• Power factor: >0.5
• 2 stickers included which allow narrowing of beam angle at both or either end
• Beam angle: without sticker is 69.9° and with the sticker is 32.7°
• Ambient temperature: -20 to 50°C
• Suitable for 2-way switching
• Suitable for use with PIR or Microwave sensors
• IP rating: IP65


Download:

Brochure: WIG1-2

Technical Spec: WIG1-2

IES: WIG1-2_STICKER

IES: WIG1-2_UP

IES: WIG1-2_DOWN
